B7018-C-T-P4S-UL FAG High Speed Angular Spindle Ball Bearing,90x140x24 mm

B7018.C.T.P4S.UL High Precision Ball Bearing，Machine tool main spindle bearing
B7018-C-T-P4S-UL FAG High Speed Angular Spindle Ball Bearing
15 degrees Contact Angle
P4 Grade
90mm x 140mm x 24mm
Made in Germany
B7018.C.T.P4S.UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany
Item: B7018.C.T.P4S.UL FAG Ball Bearing，FAG machine tool main spindle bearing
Type: FAG Angular Spindle Ball Bearing
ball: steel
Quality: P4 Grade
Dimensions: 90mm x 140mm x 24mm /Metric
ID (inner diameter)/Bore: 90mm
OD (outer diameter): 140mm
Width/Height/thickness: 24mm
Size:90 x 140 x 24 mm
Quantity: One Bearing
Dynamic load rating Cr: 78000 N
Static load rating Cor: 51000 N
Limiting Speed:
Grease Lubrication: 10,000 RPM
Oil Lubrication: 15,000 RPM
Made in Germany
The delivery time: in stock, within one day after getting the order
Package:standard carton or standard wooden case
Shipping term:TNT,FEDEX,DHL Express or your required.

B7018-C-T-P4S.UL bearing

B7018.C.T.P4S.UL bearing

B7018CTP4SUL bearing

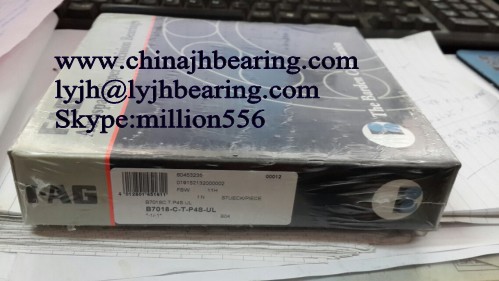

B7018-C-T-P4S-UL FAG High Speed Angular Spindle Ball Bearing,90x140x24 mm Images
