B7224.C.T.P4S.UL FAG machine tool main spindle bearing,120x215x40mm,Made in Germany

B7224.C.T.P4S.UL High Precision Ball Bearing B7224.C.T.P4S.UL Machine tool main spindle bearing
B7224.C.T.P4S.UL FAG High Speed Angular Spindle Ball Bearing
15 degrees Contact Angle
P4 Grade
120mm x215mm x 40mm
Made in Germany

B7224.C.T.P4S.UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7224.C.T.P4S.UL FAG Ball Bearing，FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 120mm x215mm x 40mm /Metric

ID (inner diameter)/Bore: 120mm

OD (outer diameter): 215mm

Width/Height/thickness: 40mm

Size:120 x 215 x 40 mm

Quantity: One Bearing

Dynamic load rating Cr: 205000 N

Static load rating Cor: 138000 N

Limiting Speed:

Grease Lubrication: 6000 RPM

Oil Lubrication: 9000 RPM

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required

B7224-C-T-P4S.UL bearing

B7224.C.T.P4S.UL bearing

B7224CTP4SUL bearing

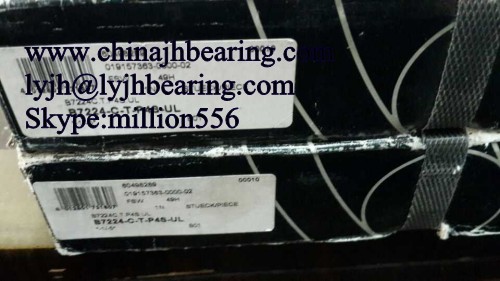

B7224.C.T.P4S.UL FAG machine tool main spindle bearing,120x215x40mm,Made in Germany Images
