HSS71909-C-T-P4S-UL FAG original machine tool main spindle bearing,45x68x12mm,In stock

Place of Origin : Germany

Brand Name : FAG

Model Number : HSS71909-C-T-P4S-UL

Certification : ORIGINAL

Price : NEGOTIATION

Packaging Details : Standard carton

Delivery Time : 2 days

Payment Terms : T/T

Supply Ability : 1000PCS/MONTH

MOQ : 2PCS

Contact Now

FAG bearings HSS71909.C.T.P4S.UL
d: 70mm D: 110mm B: 20mm
Type:	HSS	Bearing with small balls ceramic balls sealed
Dimension series:	719	Light series
Dimension（dxDxh）		45x68x12mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

HSS71909.C.T.P4S.UL High Precision Ball Bearing HSS71909.C.T.P4S.UL Machine tool main spindle bearing

HSS71909CTP4SUL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HSS71909-C-T-P4S-UL FAG Ball Bearing，FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel ball

Quality: P4 Grade

Dimensions: 45mm x68mm x12mm /Metric

ID (inner diameter)/Bore: 45mm

OD (outer diameter): 68mm

Width/Height/thickness: 12mm

Size:45 x 68 x 12mm

Quantity: One Bearing

Dynamic load rating Cr: 9600 N

Static load rating Cor: 6000 N

Limiting Speed:

Grease Lubrication: 28000 RPM

Oil Lubrication: 0 RPM

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required.

HSS71909-C-T-P4S-UL FAG original machine tool main spindle bearing,45x68x12mm,In stock

Product Tags:

fag HSS71909-C-T-P4S-UL bearing

HSS71909.C.T.P4S.UL bearing

HSS71909CTP4SUL bearing

Wholesale HSS71909-C-T-P4S-UL FAG original machine tool main spindle bearing,45x68x12mm,In stock from china suppliers

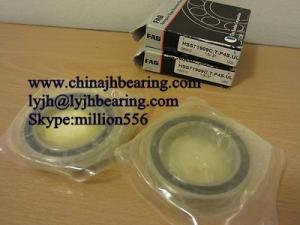

HSS71909-C-T-P4S-UL FAG original machine tool main spindle bearing,45x68x12mm,In stock Images
