B7020.C.T.P4S.UL FAG original machine tool main spindle bearing,100x150x24mm,B7020.C.T.P4S.UL Spindle bearing

Product Categories
JinHang Precision Bearing Co.,Limited
Contact Now

B7020.C.T.P4S.UL FAG original machine tool main spindle bearing,100x150x24mm,B7020.C.T.P4S.UL Spindle bearing

Place of Origin : Germany

Brand Name : FAG

Model Number : B7020-C-T-P4S-UL

Certification : ORIGINAL

Price : NEGOTIATION

Packaging Details : Standard carton

Delivery Time : 2 days

Payment Terms : T/T

Supply Ability : 1000PCS/MONTH

MOQ : 2PCS

Contact Now


FAG bearings B7020-C-T-P4S-UL

adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances

d: 100mm D: 150mm B: 24mm

Type:

B

Standard Steel balls

Dimension series:

70

Medium series

Dimension（dxDxh）

100x150x24mm

Contact angle:

C

C =15° E = 25°

Cages:

T

Plastic fiber cage, outer ring guided

Precision:

P4S

P4S FAG standard, reference to DIN620, higher than P4

Bearing arrangement:

U

single bearing, universal assemble

Preload:

L

light preload

B7020-C-T-P4S-UL High Precision Ball Bearing，Machine tool main spindle bearing
B7020.C.T.P4S.UL FAG High Speed Angular Spindle Ball Bearing
15 degrees Contact Angle
P4 Grade
100mm x 150mm x 24mm
Made in Germany

B7020.C.T.P4S.UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7020CTP4SUL FAG Ball Bearing，FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 100mm x 150mm x 24mm /Metric

ID (inner diameter)/Bore: 100mm

OD (outer diameter): 150mm

Width/Height/thickness: 24mm

Size:100 x 150 x 24 mm

Quantity: One Bearing

Dynamic load rating Cr: 83000 N

Static load rating Cor: 57000 N

Limiting Speed:

Grease Lubrication: 9,000 RPM

Oil Lubrication: 14,000 RPM

Made in Germany

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required.

B7020.C.T.P4S.UL FAG original machine tool main spindle bearing,100x150x24mm,B7020.C.T.P4S.UL Spindle bearing


Product Tags:

fag B7020-C-T-P4S-UL bearing



B7020.C.T.P4S.UL bearing



B7020CTP4SUL bearing


Wholesale B7020.C.T.P4S.UL FAG original machine tool main spindle bearing,100x150x24mm,B7020.C.T.P4S.UL Spindle bearing from china suppliers

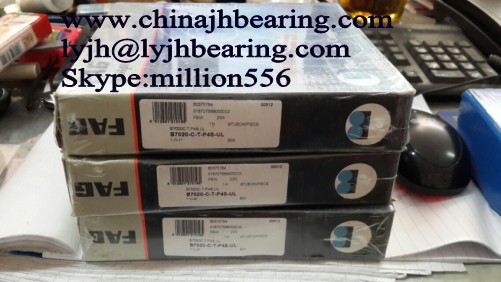

B7020.C.T.P4S.UL FAG original machine tool main spindle bearing,100x150x24mm,B7020.C.T.P4S.UL Spindle bearing Images
