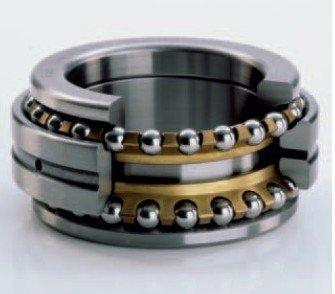

FAG 234416-M-SP Axial angular contact ball bearings Dimension:80x125x54mm

FAG 234416-M-SP bearing:
Type: Axial angular contact ball bearings, separable
Row: double row
Precision: high precision SP grade
Cage: machined brass cage
Dimension: 80 mm x 125mm x 54mm
Weight: 1.79 KGS/PC
Axial dynamic load rating: 56000 N
Axial static load rating: 175000 N
Limiting speed by grease lub: 4500 r/min
Limiting speed by oil lub: 6000 r/min
Origin: made in Germany
Bearing Feature:
1. Double direction angular contact thrust ball bearings achieve a very high level of rigidity through their internal design and preload.
2. Double direction angular contact thrust ball bearings with 60° contact angle are well suited for applications requiring high axial stiffness.
3. Series 2344-2347 bearings should be used in combination with cylindrical roller bearings because they carry only thrust loads.

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required
